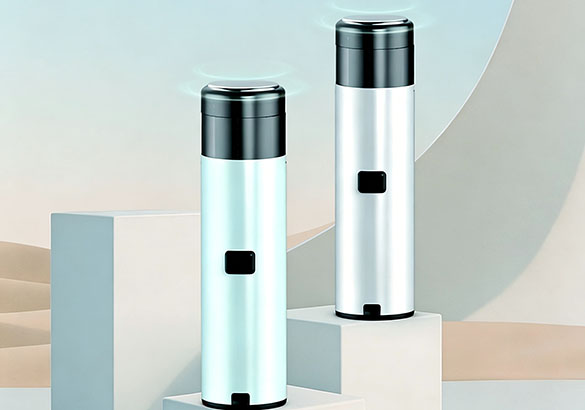

The medical ultrasonic nebulizer and atomizer  is a professional medical device designed to aerosolize liquid medication into fine particles.

These particles can be inhaled via the patient's respiration and deposited in the respiratory tract, thereby achieving therapeutic effects.

 It is used for the nebulization of liquid drugs for patient inhalation therapy.

Equivalent volume particle size distribution curve measured according to YY0109-2013.

The following technical data were obtained at a room temperature of 23°C ±5°C, humidity of 30% RH ~ 70% RH,

and without the inhalation mask (tested with 8 ml of purified water), with a median particle size of 5 µm ±25%.

Technical Specifications

-Operating Frequency: 110 KHz ±10%

-Median Particle Size: 5.0 µm ±25%

-Equivalent Volume Particle Size Distribution: Proportion of particles <5 µm > 60%

-Nebulization Rate: ≥24 L/s

-Medication Cup Capacity: 8.0 mL ±0.3 mL

-Overall Noise Level: ≤50 dB (A-weighted)

-Water Temperature in Nebulizer: <40°C

-Inhalation Mask Size: 31 mm x 66 mm

Working Environment

-Ambient Temperature: 5°C ~ 40°C

-Relative Humidity: 30% ~ 75%

-Atmospheric Pressure: 800 hPa ~ 1060 hPa

Storage/Transportation Environment

-Internal Power Supply: DC 3.7V ±10%

-Ambient Temperature: -20°C ~ +55°C

-Ambient Humidity: ≤93%

-Atmospheric Pressure: 680 hPa ~ 1060 hPa

Product Performance

The continuous nebulization time is 3 seconds. If this duration is exceeded, the main unit will stop outputting, the indicator light will flash, and the nebulization function will be locked. It will unlock automatically after 3 seconds.

The power adaptability is within the range of the rated voltage ±10%.

Electromagnetic compatibility complies with the requirements of the YY9706.102-2021 standard.

Electrical safety complies with the requirements of the GB9706.1-2020, WY9706.111-2021, and YY0109-2013 standards.

Dimensions

-Nebulizer: 28 mm (Diameter) x 42 mm (Height)

-Main Unit: 28 mm (Diameter) x 85 mm (Height)

Use and Applications

-Used for the nebulization of liquid medication for patient inhalation therapy.

-This product is suitable for use in hospitals, clinics, and home settings. It can also be used during travel, in high-altitude or outdoor environments, and on vehicles such as cars and ships.
